LiDAR terrain viewer

See the ground, not just the coverage box.

These are real USGS 3DEP-derived terrain images for the Painted Desert Route 66 proof area. The orange relief and gray hillshade load directly on the map with transparency sliders so first-time visitors can see the road landscape without opening a separate point-cloud tool.

Open live terrain map Open orange relief PNG Open gray hillshade PNG

Transparent overlays

Orange relief + gray hillshade over the road map.

Loading LiDAR image overlays...

Painted Desert proof area

Slide the opacity and compare terrain to the current map.

Default view: south-extended west-corridor relief plus matching west-corridor hillshade. Toggle the Trading Post close-up separately when you want the tighter proof image.

Loading LiDAR terrain Preparing orange relief and gray hillshade overlays.

Direct image previews

Show people the terrain immediately.

These previews are fast static PNGs. They are better for public viewing than asking casual visitors to understand LAZ, COPC, EPT, or a point-cloud viewer on the first visit.

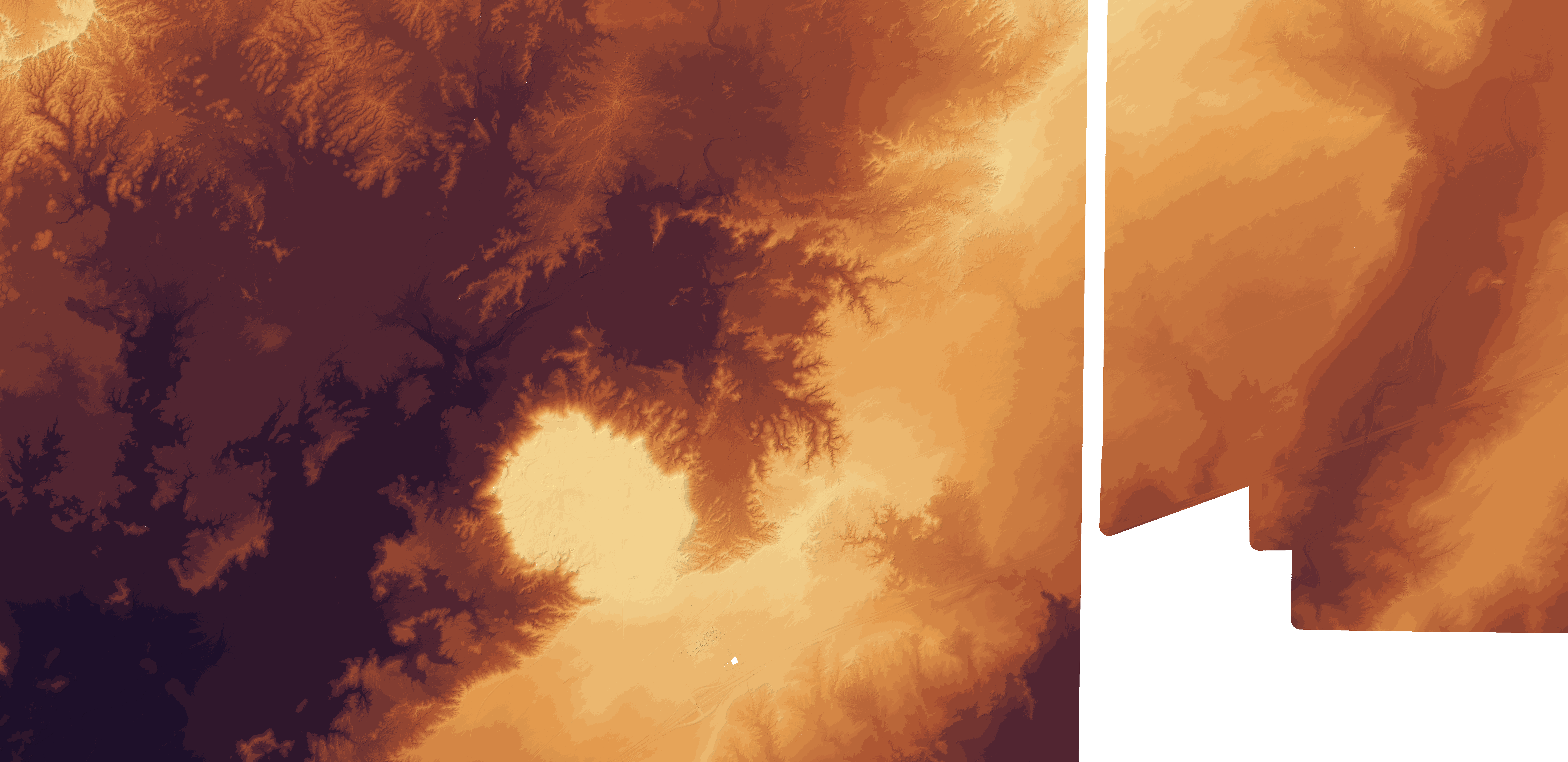

Orange color relief LiDAR terrain overlay for the Painted Desert west Route 66 corridor
West corridor color reliefOrange terrain image, broad Route 66 corridor.

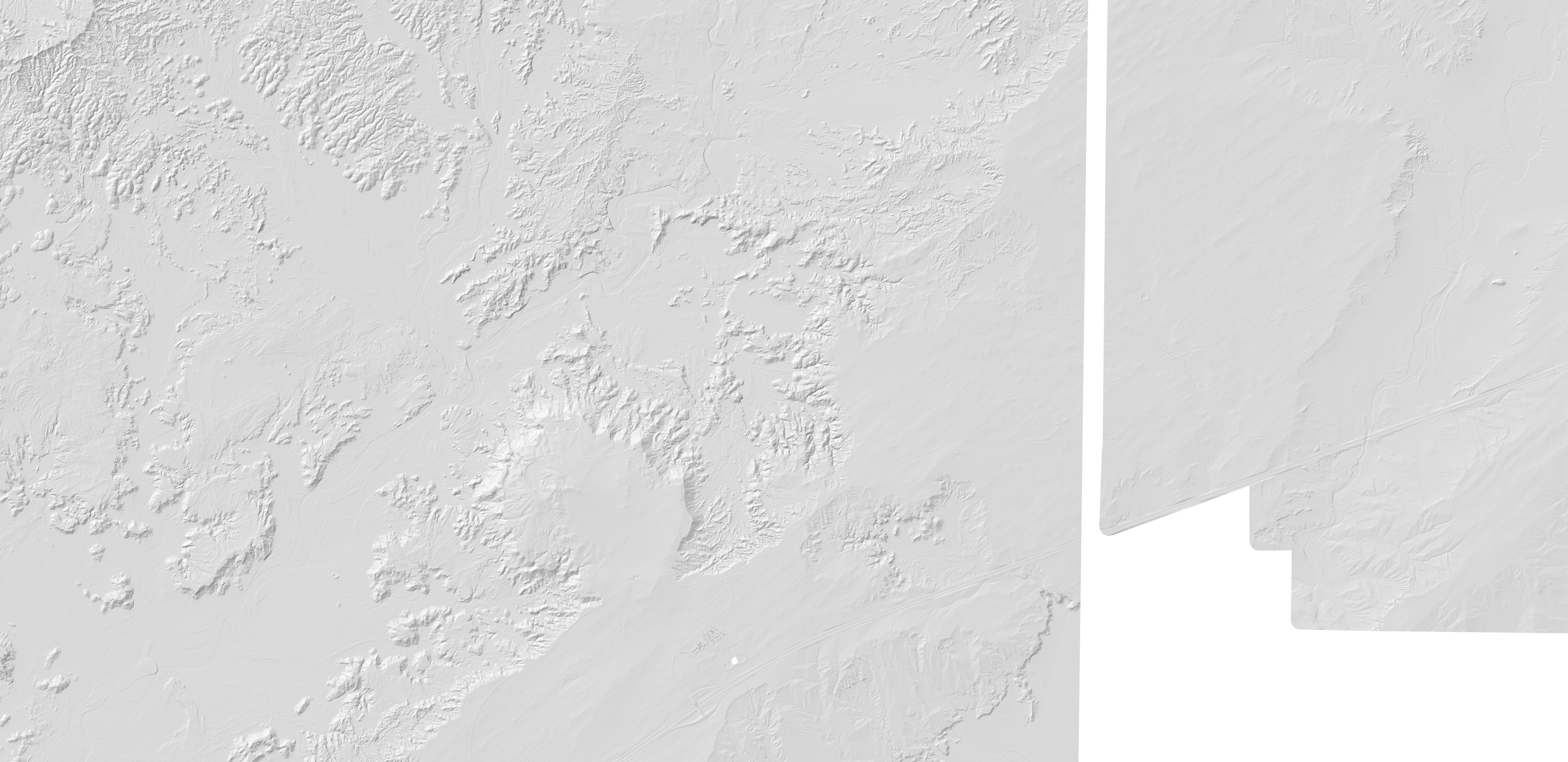

 Gray hillshade LiDAR terrain overlay for the Painted Desert west Route 66 corridor
West corridor hillshadeGray shaded terrain from ground-class points.

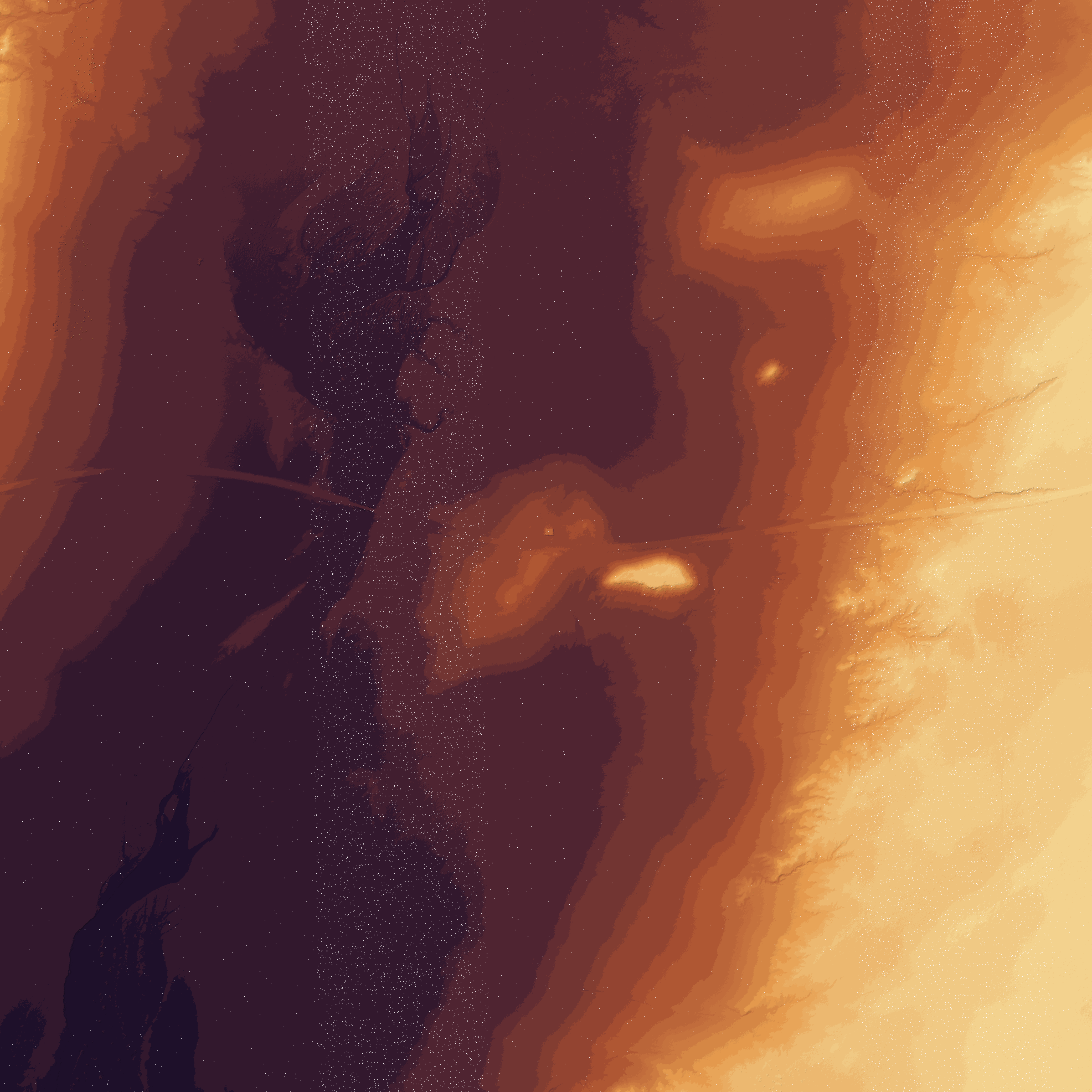

 Orange color relief LiDAR terrain close-up around the Painted Desert Trading Post
Trading Post color reliefOne-mile close-up, higher detail.

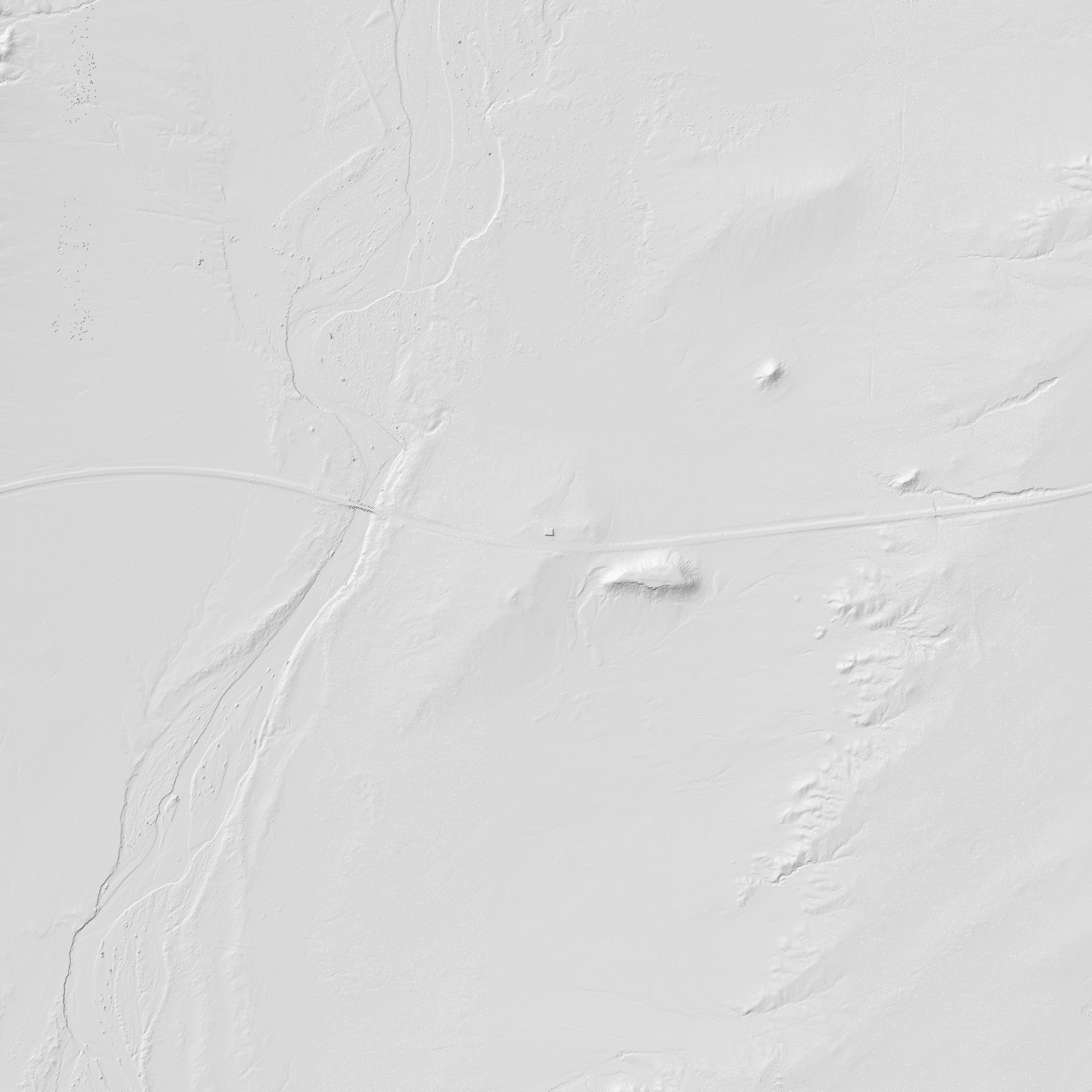

 Gray hillshade LiDAR terrain close-up around the Painted Desert Trading Post
Trading Post hillshadeGray shaded ground close-up.

Missouri + I-44 next corridor

St. Louis to Joplin to Miami, Oklahoma.

The next large LiDAR lane is indexed as a 331.9-mile Route 66 / I-44 planning corridor with 35 ten-mile station boxes and a smooth 10-mile buffer for future public terrain renders.

STL

St. Louis start

Anchor box covers the St. Louis / Chain of Rocks / I-44 entry zone and returned TNM LiDAR product metadata.

MO

Ozarks + Shamrock

The slice includes the Shamrock/Missouri Ozarks research area so old-road LiDAR can connect back to the larger corridor.

OK

Joplin to Miami

The western end reaches Miami, Oklahoma, so the Missouri work does not stop short at the state line.

Open corridor station JSON Open smooth buffer GeoJSON View map layer

Terrain source stack

Render once, view fast.

For public pages, the better product is not a raw point-cloud download. It is a rendered terrain stack: hillshade, color relief, aerial context, route line, and source notes, all transparent on a normal map.

3DEP

Best terrain base

USGS 3DEP is the first-choice public LiDAR source for bare-earth terrain, hillshade, slope, and proof-area rendering.


Aerial context

Use public/approved aerial imagery such as USGS and NAIP-style coverage for current ground context when rights allow display.

TILE

Fast public display

Render heavy LiDAR once into PNG or future map tiles, then let visitors slide opacity instead of loading raw point clouds.
